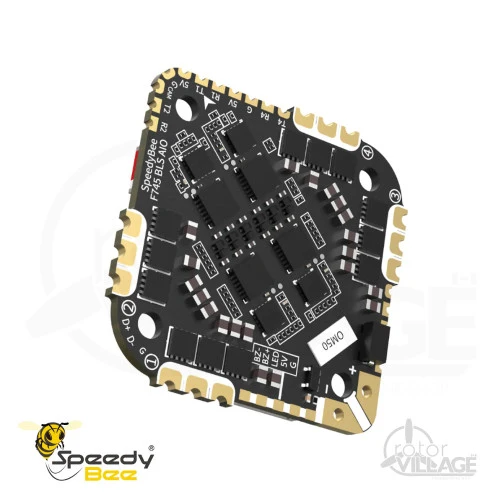

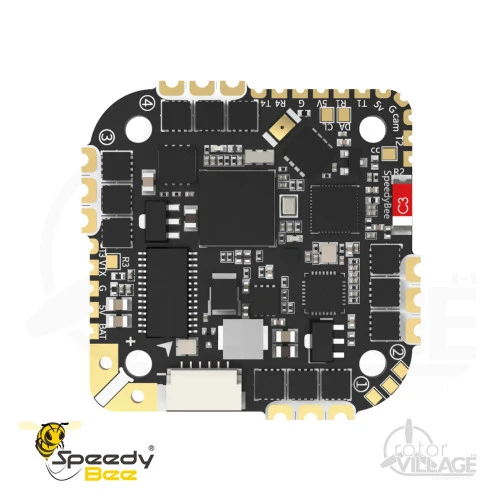

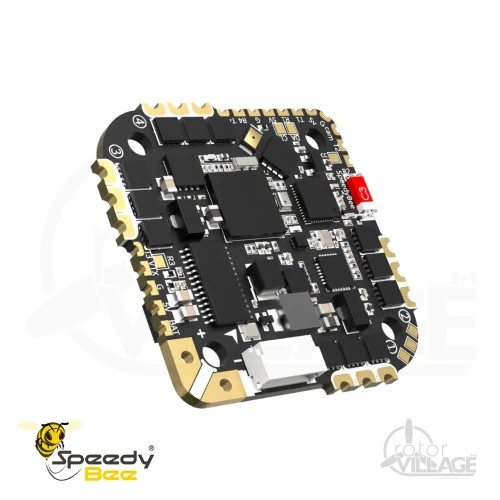

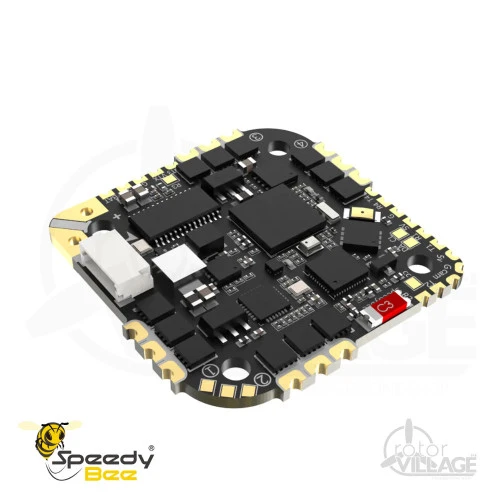

SpeedyBee F745 35A AIO

Important Note

Make sure this AIO’s slightly bigger size can fit your frame! The size of this AIO is 36.5(L)*36.5(W)*7.0(H)mm.
We suggest you use this AIO on your 3.5″ to 5″ cinewhoops/long-range or lightweight quads. For quads below 3.5″,you should carefully check if your quad has enough room for this AIO.

Specifications

• SpeedyBee F745 35A BLS AIO
• Power Input 3S – 6S Lipo
• Mounting 25.5 x 25.5mm, 3mm hole diameter
• Dimension 36.5mm(L) x 36.5mm(W) x 7mm(H), recommended for quads at 3.5″ or above
• Weight 10.1g
• FC
• MCU STM32F745
• IMU(Gyro) MPU6000
• USB Connection Need to solder a USB TYPE-C module to D+,D-,GND pads.
• Barometer BMP280
• OSD Supported
• BLE Bluetooth Supported. Used for parameter configuration
• Flash FC Firmware Wirelessly Supported
• Download/Analyze Blackbox Supported
• DJI Air Unit 6-pin Connector Built-in.
• Flash(for BlackBox) 8MB
• Current Sensor Supported. Scale=256
• BetaFlight Camera Control Pad Yes(CC pad)
• 5V Output 4 groups of 5V output. The total current load is 2.5A.
• 9V Output None
• 3.3V Output Supported. Up to 500mA current load.
• ESC Signal Pads M1 – M4
• UART Full UART * 4(UART1, UART2, UART3,UART4)
• ESC Telemetry UART None
• I2C Supported.
• LED Pad Used for WS2812 LED
• Buzzer BZ+ and BZ- pad used for 5V Buzzer
• BOOT Button Used to enter DFU mode
• RSSI Input Not supported
• SmartPort Use any TX pad of UART for the SmartPort feature.
• Supported Flight Controller BetaFlight(Default)
• Firmware Firmware Target Name SPEEDYBEE F745AIO
• ESC
• Power Input 3-6S LiPo
• Continuous Current 35A * 4
• Burst Current 45A(5S)
• ESC Protocol DSHOT300/600
• Power Output VBAT
• Current Sensor Supported(Scale=256)
• Firmware BLHeli_S JH40

Downloads

• User Manual



Package Contents

• 1x SpeedyBee F7 Mini 35A 3-6S 20×20 Stack/Combo
