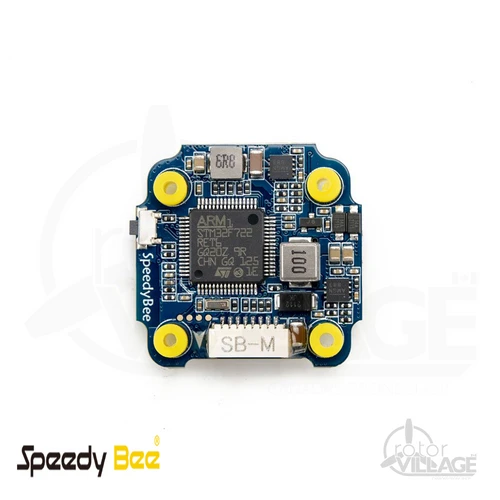

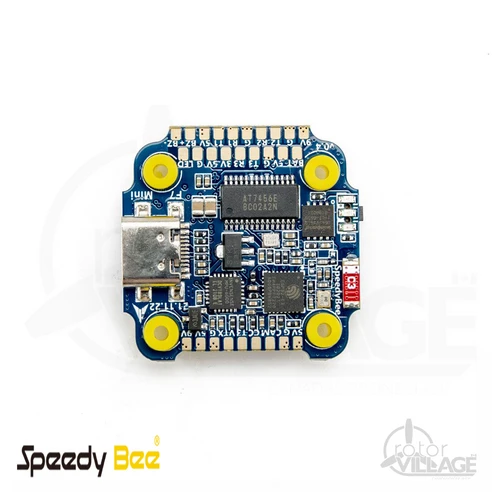

SpeedyBee F7 Mini 20×20 Flight Controller

IMPORTANT: 1 batch has an incorrect gyro orientation default in Betaflight. Make sure to check the orientation and correct if needed in Betaflight.

The SpeedyBee F7 Mini FC has come to change the way you deal with electronics. Flash, update, configure, all without having to plug into any computer. With the SpeedyBee app, you can change almost any parameter wirelessly!

Specifications

• Input Voltage: 3-6S
• MCU: STM32F722
• Gyro: BMI270
• Barometer: No
• OSD Chip: AT7456E
• Bluetooth: Yes
• DJI Air Unit Soldering Pads: Supported
• BlackBox: 8MB Flash
• Current Sensor: Yes
• BEC: Yes
• ESC Signal Pads: 4
• UARTs: 3(UART1, UART2, UART3)
• ESC Telemetry: R4(UART4)
• LED Pad: Used for WS2812 LED
• Buzzer: Yes
• Firmware: BetaFlight(Default), EMUFlight, INAV
• Firmware Target: SPEEDYBEEF7MINI
• Mounting Dimensions: 20 x 20mm, 3.5mm hole diameter
• Weight 5.7g

Package Contents

• 1x F7 Flight Controller
• 1x Manual and App Download Card
• 1x 8pin JST Cable
• 5x M2 Grommets
• 5x M3 Grommets
