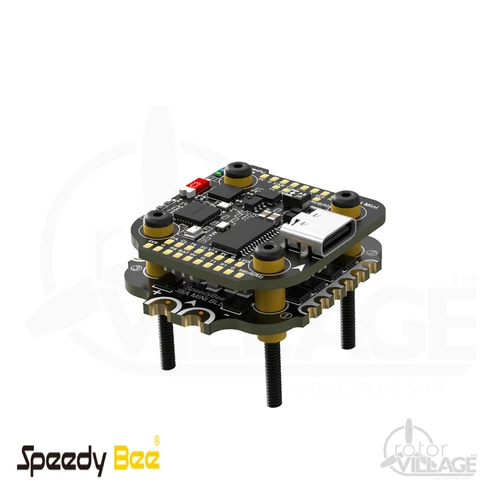

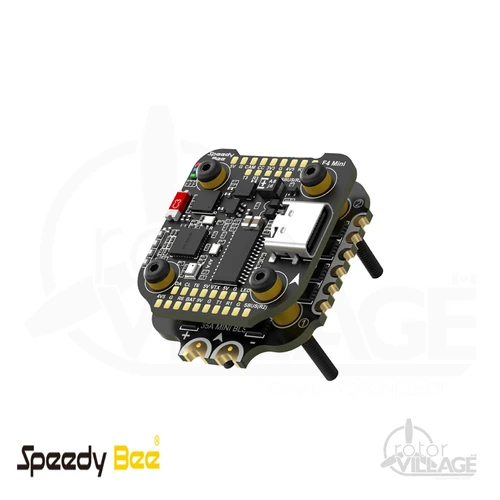

SpeedyBee F405 Mini BLS 35A 20×20 Combo Stack

Specifications

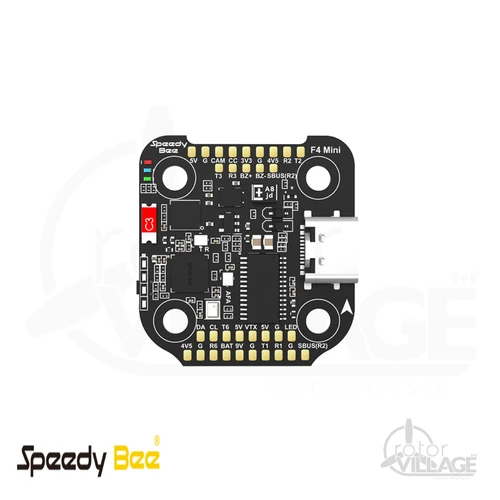

ProductName	SpeedyBee F405 20×20 Mini Flight Controller
MCU	STM32F405
IMU(Gyro)	ICM42688P
USB Port Type	Type-C
Barometer	Built-in
OSD Chip	AT7456E chip
BLE Bluetooth	Supported. Used to connect with the SpeedyBee App for flight controller and ESC parameter configuration. Please make sure the MSP switch on UART 4 is turned on and set to a baud rate of 115200, otherwise Bluetooth functionality will not be available.
Wireless FC Firmware Flashing	NOT Supported. Please connect to the Betaflight configurator on the PC to do FC firmeare update
Wireless Blackbox Dwonload & Analysis	NOT Supported. Please connect to the Betaflight configurator on the PC to do blackbox analysis.
WIFI	Not supported
DJI Air Unit Connection Way	Direct soldering
DJI Air Unit Compatibility	Compatible with all DJI Air Units: DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1. Please use the solder pads < 9V, G, T1, R1, G, SUBS(R2) > on the front right corner of the flight controller to make a pin-to-pin connection with the solder pads on the DJI Air Unit. UART1(T1, R1) is used for OSD and SUBS(R2) is used for DJI Air Unit’s internal SBUS receiver signal input.
Blackbox	8MB Onboard Flash
BetaFlight Camera Control Pad	Yes(CC pad on the front side)
Current Sensor Input	Supported. For SpeedyBee BLS 35A V2 ESC, please set Scale=250 and Offset=-500.
Power Input	3-6S LiPo. The flight controller is powered through the G, V wires of the 8pin harness or G, V pads from the bottom side of the flight controller.
5V Output	4 groups of 5V output, three +5V pads and 1 BZ+ pad( used for Buzzer) on front side. The total current load is 2A.
9V Output	1 group of 9V output, one +9V pad on front side. The total current load is 3A.
3.3V Output	Supported. Soldering pad named ‘3V3’ on the front top of the flight controller. Designed for 3.3V input receivers. Up to 500mA current load.
4.5V Output	Supported. Designed for radio receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load.
ESC Signal	M1 – M4 wires or soldering pads on bottom side.
UART	6 sets(UART1, UART2, UART3, UART4(Dedicated for Bluetooth connection)), UART5(Dedicated for ESC telemetry),UART6
ESC Telemetry	UART R5(UART5)
I2C	Supported. DA & CL pads on front side. Used for magnetometer, sonar, etc
Traditional Betaflight LED Pad	Supported. 5V, G and LED pads on bottom of the front side. Used for WS2812 LEDs controlled by the Betaflight firmware.
Buzzer	BZ+ and BZ- pad used for 5V Buzzer
BOOT Button	Supported. Press and hold BOOT button and power the FC on at the same time will force the FC to enter DFU mode, this is for firmware flashing when the FC gets bricked.
RSSI Input	Not Supported
Smart Port / F.Port	Not Supported
Supported Flight Controller Firmware	BetaFlight(Default), INAV
Firmware Target Name	SPEEDYBEEF405MINI
Mounting	20 x 20mm 3.5mm hole diameter ，Compatible with M2 and M3 screws/Silicone grommets.
Dimension	30(L) x 32(W) x 7.8(H)mm
Weight	9.6g

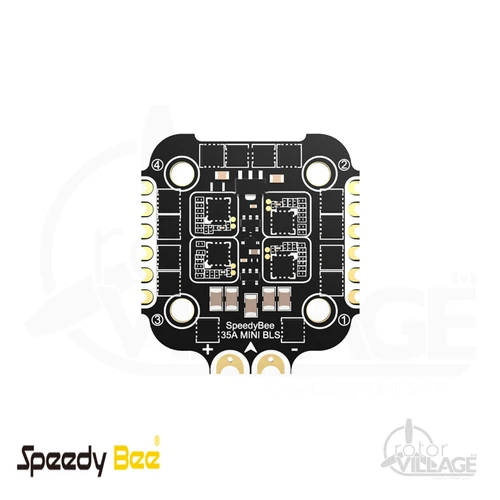

Product Name	SpeedyBee 35A BLHeli_S Mini V2 4-in-1 ESC
Firmware	BLHeli_S J-H-40
Continuous Current	35A * 4
Burst Current	45A(5seconds)
ESC Protocol	DSHOT300/600
Power Input	3-6S LiPo
Power Output	VBAT(Battery voltage, used to power the flight controller)
Current Sensor	Support (Scale=250 Offset=-500)
Mounting	20 x 20mm ∅3.5mm hole size，compatible with M2 and M3 screws/Silicone grommets.
Dimension	35 * 35 * 5.5mm
Weight	7.2g
