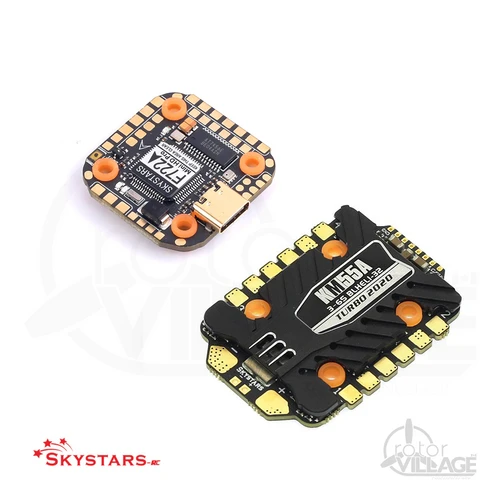

Skystars F7 Mini HDPro + KM55A Combo Stack
Features
- The world’s first 55A ESC, use standard big 5x6mm MOSFET on 20×20 mounting holes, Make a small size ESC can also stable withstand big current now.
- Excellent over-current capability
- By adopting the best PCB material and PCB production process. Such as application of high TG materials, 3oz copper PCB & 2μm gold deposition process on PCB. Together with independent current board layout design, can withstand bigger current.
- Extreme stably support 6S LiPo battery
- By use of 24 pcs of new ON brand standard 40V 5×6 Mosfet & imported from USA or Japan electronic materials. Plus advanced lead-free SMT Processing technology.It makes ESC can fully support 6s battery and get better performance.
- Excellent heat dissipation performance
- F1 racing car appearance of CNC hollow aluminum alloy shell used, Not only good for heat dissipation but also get a beautiful appearance.
- Better control performance
- Flashed with the latest Blheli_32 firmware in factory, support telemetry functions (including voltage, RPMS & current )

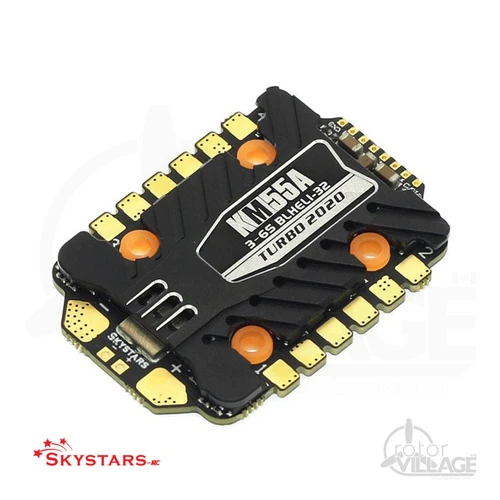

ESC Specifications
- Input voltage: 3-6S LiPo
- Con.Current: 55A
- Peak Current: 70A≥ 10S
- Firmware: BLHeli_32
- Support: Dshot 600/1200
- Mounting hole : 20X20 mm/M3
- BEC: No
- Product size: 35*47*6.5mm
- Weight: 16.5g

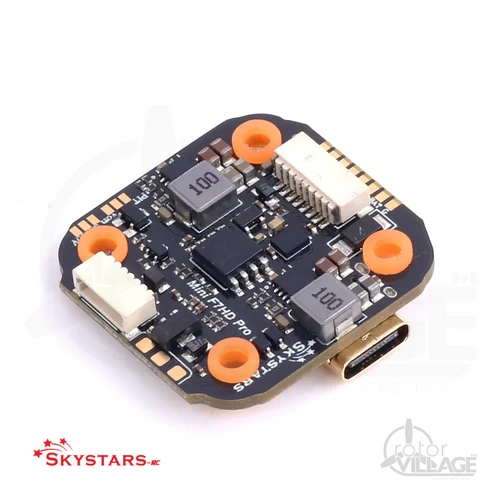

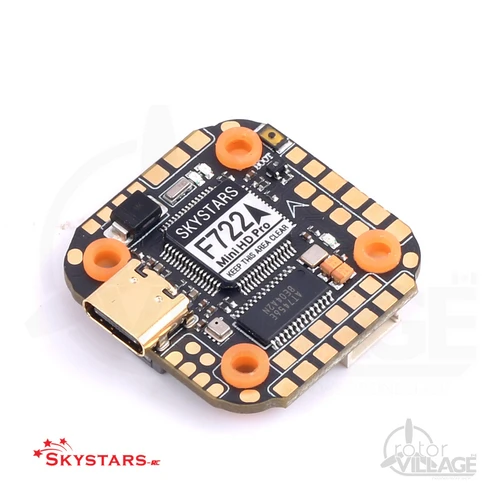

FCÂ Specifications
- MCU: STM32F722RGT6 216MHz
- IMU: MPU6000 (SPI)
- OSD: Betaflight OSD & DJI HD OSD (UART6)
- 6 hardware UARTS (UART1,2,3,4,5,6)
- Barometer: YES
- Buzzer Pad: YES
- 5V 2A & 10V 2A
- Input Voltage: 3-6S Lipo
- Blackbox: 16MB
- Firmware: SKYSTARS F7HD
- Dimensions: 35x28x7mm
- Mounting Holes: Standard 20mm/M3 square to the center of holes
- Supports DJI
- Weight: 4.2g
Package Contents
- 1 x SkyStars F7 3-6S 20×20 HD Flight Controller
- 1 x SkyStars KM40 40A Mini 3-6S BLHeli_32 4-in-1 ESC
