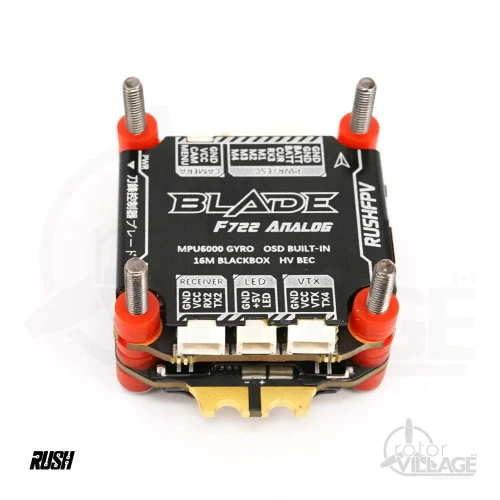

Rush BLADE F722 Analog Combo Stack – 60A 30×30

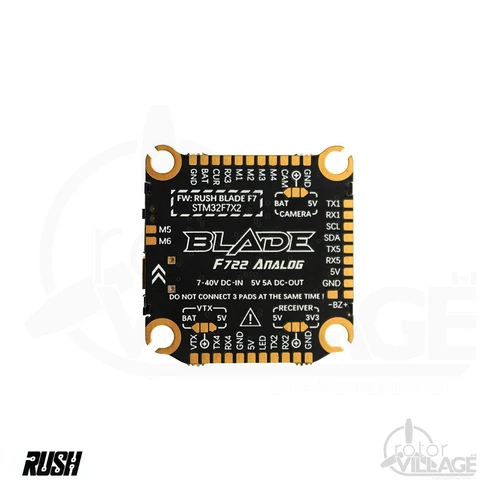

FC Specifications
- MCU: 216MHz
- GYRO: MPU6000
- OSD: Onboard OSD
- Input Voltage:3-8S
- BEC: 5V/5A
- Mounting Holes: 30.5mm x 30.5mm
- Firmware: betaflight_4.2.0_RUSHFC_8f2d21460

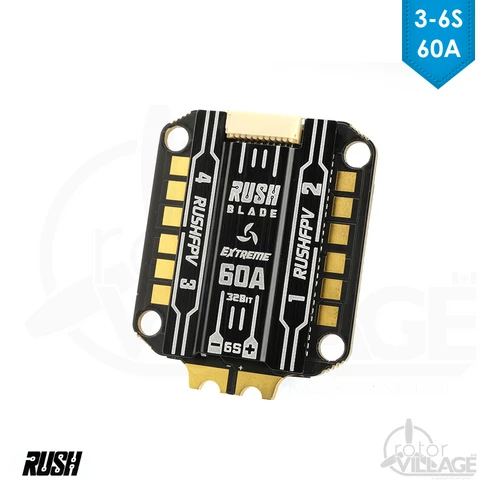

Esc FEATURES
- BLHeli_32 firmware is the third generation of BLHeli firmware, following base BLHeli and BLHeli_S.
- 32-bit microprocessor running at a frequency of up to 200MHz for an excellent performance.
- Supports up to 128K PWM frequency, so the response speed is faster and smoother, reducing mid-throttle oscillations.
- Equipped with double-sided lightweight metal armor to avoid hardware damage caused by crashes, and the armor can effectively assist the MOSFET to dissipate heat.
- Double PCB board design, high current circuit, and signal circuit are independent of each other.
- All codes use damped light mode. Damped light does regenerative braking, causing very fast motor retardation, and inherently also causing active freewheeling.
- Supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multishot (5-25us).
- Dshot signaling is supported at any rate up to at least Dshot1200. The input signal is automatically detected by the ESC upon power-up, No need for throttle calibration.
- All codes use damped light mode. Damped light mode does regenerative braking, causing very fast motor retardation, and inherently also causing active freewheeling.
- Supports beacon functionality, where the ESC will start beeping after a given time of zero throttles. This can be very useful for finding a lost drone.
Esc SPECIFICATIONS
- Rated Current: 60A
- Peak Current: 80A
- Input Voltage: 3-6S Lipo
- MCU: F4 @ 200MHz
- PWM FREQ: 24-128KHz
- LED Color:Â Orange
- Weight:16.5g
- Dimension: 45*36.5*7.5mm
- BLHeli32 Firmware: RUSH_BLADE_EXTREME

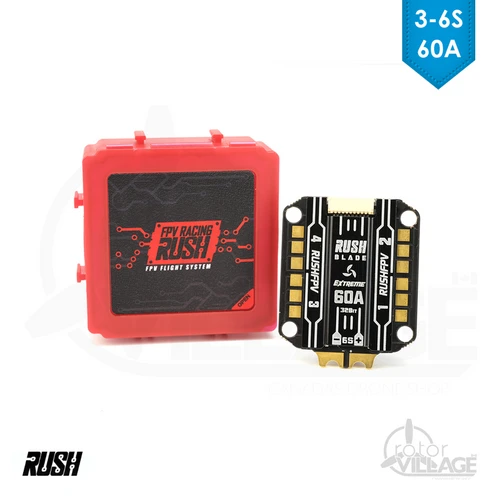

Package Contents
- 1 x RUSH BLADE F722 30×30 Combo Stack
- 2 x 60MM LED/RX Cable
- 1 x 60MM ESC Cable
- 2 x Camera Cable
- 2 x VTX Cable
- 5 x 8MM Grommet
