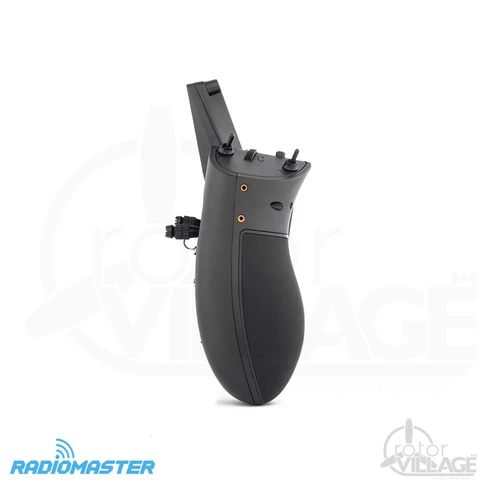

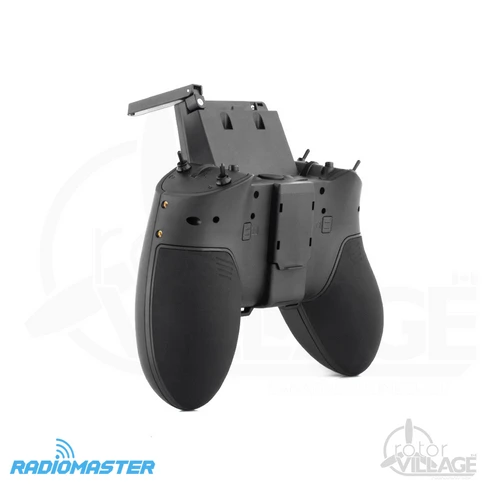

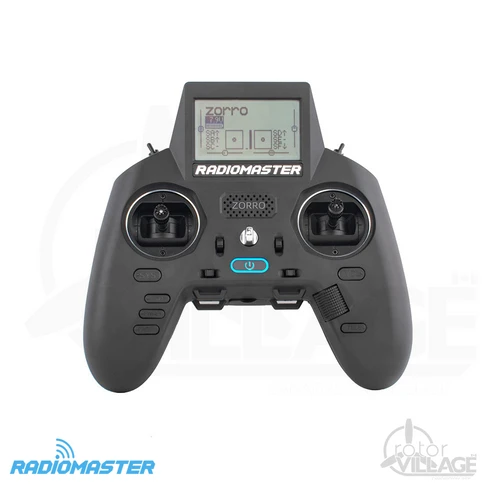

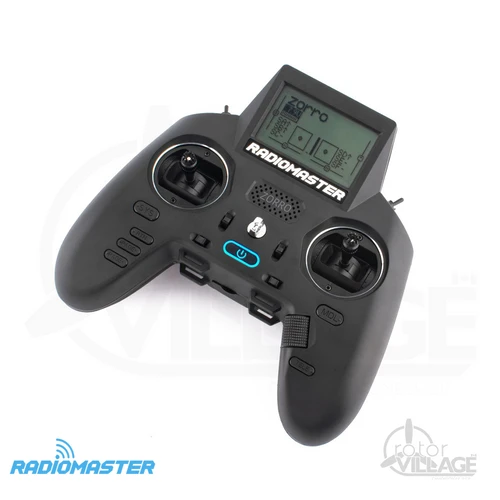

RadioMaster Zorro Transmitter (ELRS)

The RadioMaster Zorro Radio Controller ELRS is the best RC in its class. This radio controller features an oversized LCD display and officially supports OpenTX and EDGETX Firmware. It can be charged via USB-C and uses an external 2S power supply. The external module supports both TBS and ELRS. This is the ExpressLRS version.

***IMPORTANT: Batteries are NOT INCLUDED!

Battery options

• Internal (REQUIRED)
• RadioMaster Zorro 18350 900mAh 3.7V Battery (2Pcs)
• External (optional)
• RadioMaster 5000mah 2S Li-ion Battery (more capacity)
• GNB 3000mAh 2S LiPo XT30 (better size)

Features

• External Module Bay Supports TBS / ELRS
• Improved Metal Roller for Precise Control
• Supports External 2S Power Supply
• Supports USB-C direct charging
• Supports OPENTX & EDGETX
• 18350 Battery Compartments
• Ergonomically Designed
• Adjustable Hall Gimbals
• Oversized LCD Screen
• Soft Leather Grips
• Foldable Antenna
• ELRS Model

Specifications

• Module bay: Nano size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)
• Firmware Upgrade method: Via USB or SD card (SD Not included)
• RF power: TBA (CE and FCC Version will be available)
• Operating system: OpenTX / EdgeTX Compatible
• Control channels: Maximum 16 (Rx dependent)
• Operating frequency: 2.400GHz-2.480GHz
• Physical dimensions: 170*159*108mm
• Charging: Built-in USB-C Charging
• Display: 128*64 Monochrome LCD
• Operational current: [email protected]
• Operational voltage: 6.6-8.4v DC
• Battery: 2 x 18350 (Not included)
• Supported protocols: ELRS
• Internal RF Options: ELRS
• Antenna gain: Folding 2db
• Control distance: TBA
• Weight: 350 grams
• Gimba: Hall-effect

Package Contents

• 1x RadioMaster Zorro Radio Controller – ELRS
