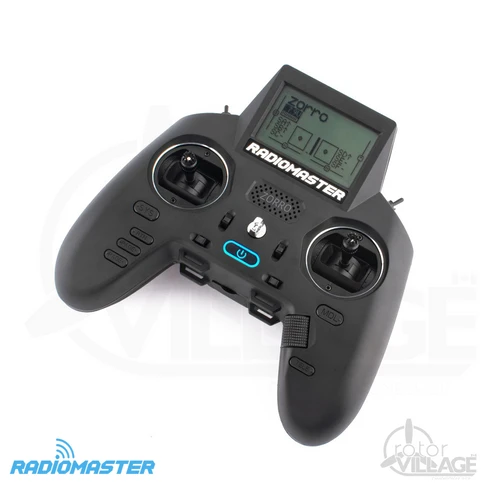

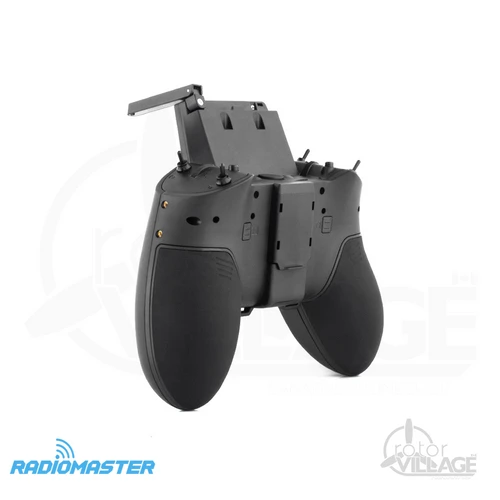

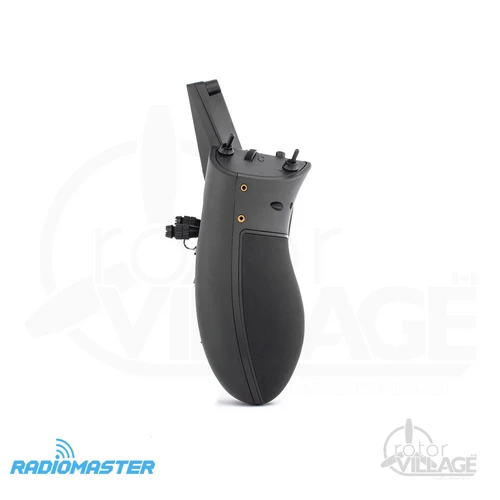

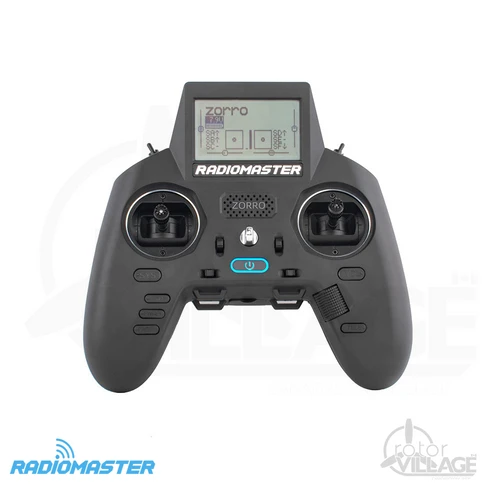

RadioMaster Zorro Transmitter (4in1)

The RadioMaster Zorro Radio Controller 4-in1 is the best RC in its class. This radio controller features an oversized LCD display and officially supports OpenTX and EDGETX Firmware. It can be charged via USB-C and uses an external 2S power supply. The external module supports both TBS and ELRS. This is the 4in1 Multi-Protocol version.

***IMPORTANT: Batteries are NOT INCLUDED!

Battery options

• Internal (REQUIRED)
• RadioMaster Zorro 18350 900mAh 3.7V Battery (2Pcs)
• External (optional)
• RadioMaster 5000mah 2S Li-ion Battery (more capacity)
• GNB 3000mAh 2S LiPo XT30 (better size)

Features

• External Module Bay Supports TBS / ELRS
• Improved Metal Roller for Precise Control
• Supports External 2S Power Supply
• Supports USB-C direct charging
• 18350 Battery Compartments
• Supports OPNTX & EDGETX
• 4-in-1 Multi-Protocol Model
• Ergonomically Designed
• Adjustable Hall Gimbals
• Oversized LCD Screen
• Soft Leather Grips
• Foldable Antenna

Specifications

• Module bay: Nano size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)
• Firmware Upgrade method: Via USB or SD card (SD Not included)
• Operating system: OpenTX / EdgeTX Compatible
• Control channels: Maximum 16 (Rx dependent)
• Operating frequency: 2.400GHz-2.480GHz
• Internal RF Options: 4-in-1 Multi- Protocol
• Supported protocols: Module Dependent
• Physical dimensions: 170*159*108mm
• Charging: Built-in USB-C Charging
• Display: 128*64 Monochrome LCD
• Operational current: [email protected]
• Operational voltage: 6.6-8.4v DC
• Battery: 2 x 18350 (Not included)
• Control distance: > 2km @ 20dbm
• RF power: 4-in1 20dBm max
• Weight: 350 grams
• Gimba: Hall-effect

Package Contents

• 1x RadioMaster Zorro Radio Controller – 4-in1 Multi-Protocol
