Ranger Nano 2.4GHZ ExpressLRS RF Starter Kit
Note: Please assemble the antenna before power on. Otherwise, the PA chip in the Nano TX module will be damaged permanently.
Update: Updated to the V1.6 PCB which is fully functional and at no risk of XT30 issues.Â

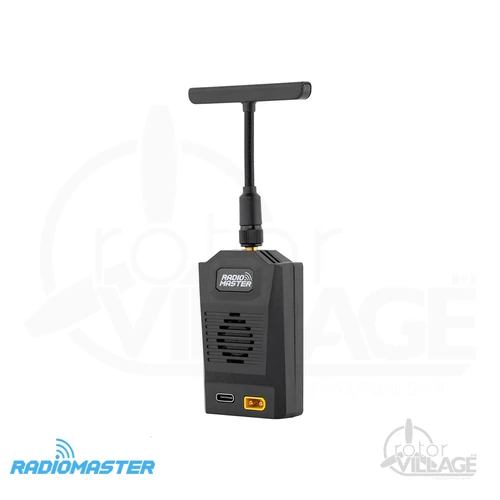

The RadioMaster Ranger Nano 2.4GHz ELRS Module Starter Combo features a nano module bay adapter, packet rates up to F-1000Hz, up to 1 Watt Power output, and a high-efficiency cooling system. This starter combo also includes additional RPI receivers and one RP2 Receiver.
Features
- Nano ExpresssLRS 2.4GHz Module

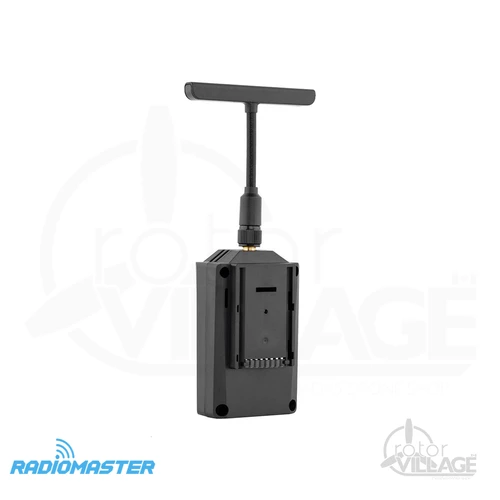

- Nano Adapter for Zorro and More
- High-Efficiency Cooling System
- WiFi and Bluetooth Support
- Max F-1000Hz Packet Rate
- 1W Power Output
Specifications
- Dimension: 136*42*26mm, 48g (with antenna) / 74*42*26mm, 39g (without antenna)
- RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)

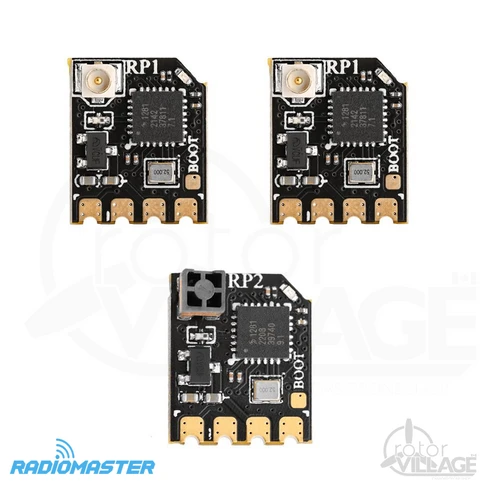

- Receivers: Two RP1 Receivers and one RP2 Receiver
- MCU: ESP32(main), ESP8285(aux,as esp backpack)
- Frequency Range: 2400 MHz to 2480 MHz
- XT30 Power supply voltage: DC 6V – 16V
- Maximum packet rate: 500Hz/F1000Hz
- Minimum receiver refresh rate: 25Hz
- Regulatory Domain: ISM2400
- Item: Ranger Nano Module
- Weight: 48g (with antenna）
- RF chip: SX1281IMLTRT
- Bluetooth support: Yes
- Wifi Support: Yes

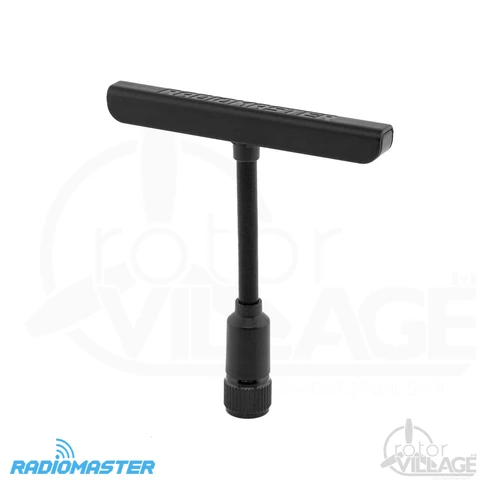

T-ANTENNA
- Antenna polarization: vertical/horizontal polarization 
- Type: T-type Omnidirectional Antenna 
- Connector: RP-SMA Male
- Frequency: 2.4GHz
- Weight: 9.5g

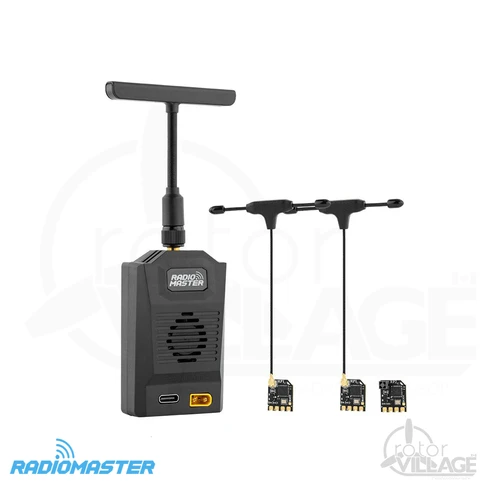

Package Contents
- 1x Nano Standard 8pin Socket Module Bay Adapter
- 1x Radiomaster Ranger Nano 2.4Ghz ELRS Module
- 1x Hexagon Socket Screwdriver
- 1x 2.4GHz T Antenna – RP-SMA
- 2x Radiomaster RP1 Receiver
- 1x Radiomaster RP2 Receiver
- 1x Futaba CRSF socket cable
- 3x M2*5 Screws
| Width | 10.00 (cm) |
|---|---|
| Height | 6.00 (cm) |
| Depth | 2.00 (cm) |
| Receiver Type | ExpressLRS |
