*Only for full DJI systems. If you use Crossfire, you still need to solder.

Specifications

• 2xBMI270 Gyro
• STM32F722   216mhz
• 3-6S direct battery input
• 5V 3A,
• 3V3 100mA
• 9V 2A 18W Design for DJI FPV Air Unit
• 5V Camera Power
• BetaFlight OSD
• 31.5×27 CB with 20×20 mounting holes, weight: 5.85g
• 6 UARTS on board.
• UART1 (Only RX, Air Unit connector)
• UART2 (Free)
• UART3 (Free)
• UART4 (TX and RX connected together for F.Port)
• UART5 (Only RX, ESC Telemetry)
• UART6 (MSP/Configuration Port for Air Unit)
• Built-in 4 IN 1 ESC socket(including ESC telemetry, External current sensor) JST1.0 8Pin
• Plug and plug with NBD  Cricket200 ESC/Infinity200 ESC. Also compatible with most of the ESC on the market.
• Built-in solder pads for ESC signal output and power

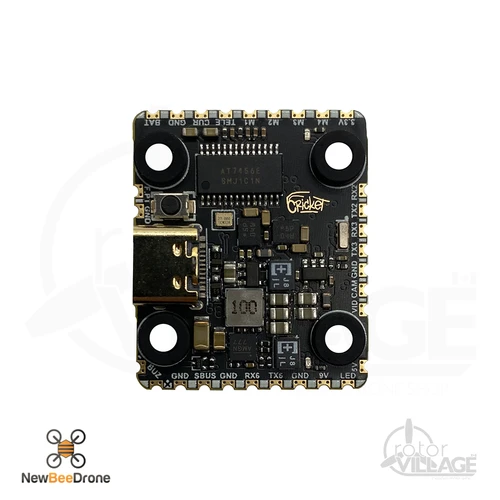

• Printed layout instructions ON the board – no need for instructions!
• DJI FPV Air Unit socket (use UART1 and UART6)

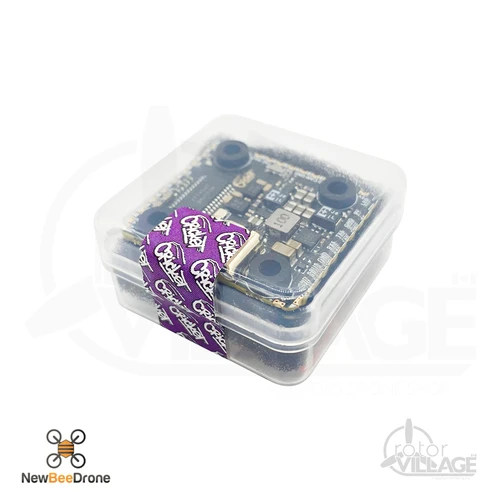

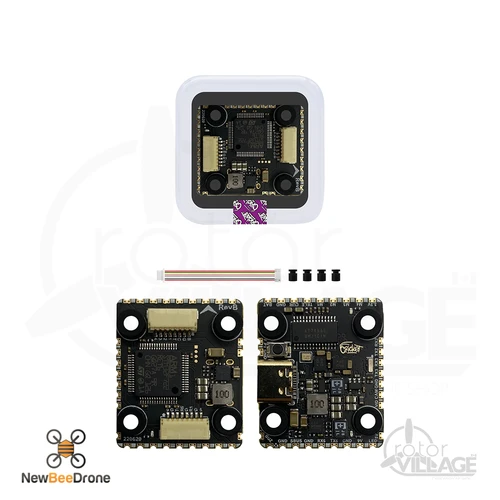

Package Contents

• 1x Cricket200 FC F7 flight controller
• 4x Grommets short 4x Grommets Long
• 1x Cricket200 FC to DJI Air module cable 70mm
