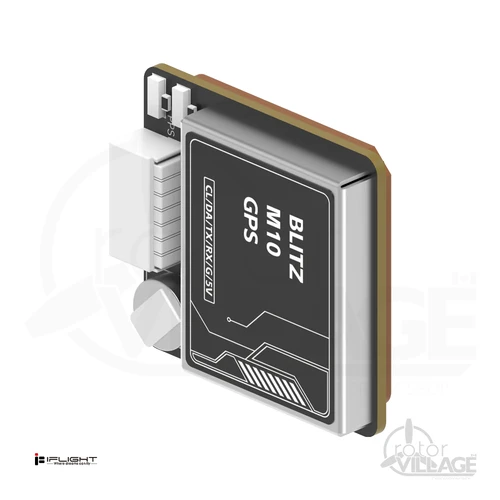

iFlight M10 BLITZ GPS Module

The iFlight BLITZ M10 GPS w/ Compass provides reliable positional and directional data for your quad. Its advanced compass and GPS module allow for precise coordinates and real-time flight information for optimal navigation. This high-performance unit helps ensure safe and accurate flight paths for your craft. Always keep a quad when you add a GPS!

Features

Using the latest UBLOX M10 chip, lower power consumption, faster satellite search speed.
Built-in high precision compass QMC5883L.
Built-in Faraday capacitor, with 1-10Hz positioning update rate, which makes GPS have faster startup speed and satellite receiving speed.
18x18mm ceramic antenna provides the best balance and performance for current GPS modules, low power consumption, strong signal and light weight.
On-board LNA low noise amplifier and RF filter provide excellent working environment for GPS module.
Up to 10HZ refresh rate.
Built-in Flash, users can set GPS parameters by themselves using U-center or other software, configuration modification will be stored to Flash, no loss of parameters after power failure.

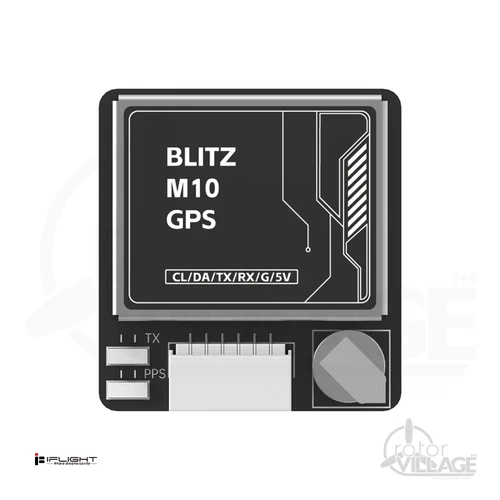

Pin Definitions

VCC: system main power supply, supply voltage is 5V, current is about 40mA when working
GND: Ground
RXD: data input
TXD: Data output
SDA: Serial Data – I2C Master/Slave Data
DCL: Serial Clock – I2C Master/Slave Clock

Light Indicator

Blue light, TX light, the blue light blinks on power up, indicating that there is data output.
Red light, PPS light, not positioned red light is not lit, 3D positioning, the red light began to flash
