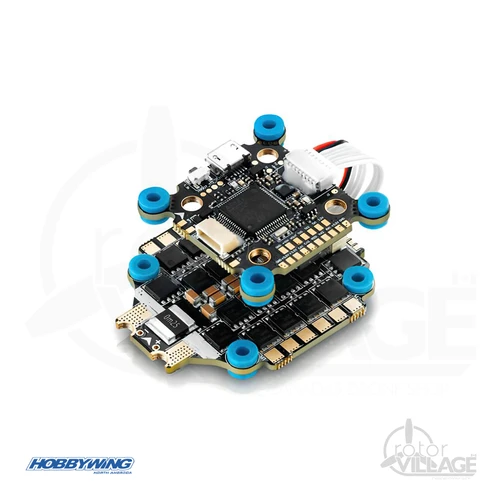

Hobbywing XRotor Combo Stack – F7 + 65A

The XRotor Micro Combo from Hobbywing continues to impress with its latest iteration. The Micro Combo features a 65A 4-in-1 ESC along with an updated F7 Flight Controller. This new FC is similar to other versions with its OSD, and voltage monitoring, but the F7 now comes with an all-new 5V & 12V dual BEC Circuit and a special interface for the DJI image transmission system.

Make your electronics stack work for you, not the other way around!

Specifications

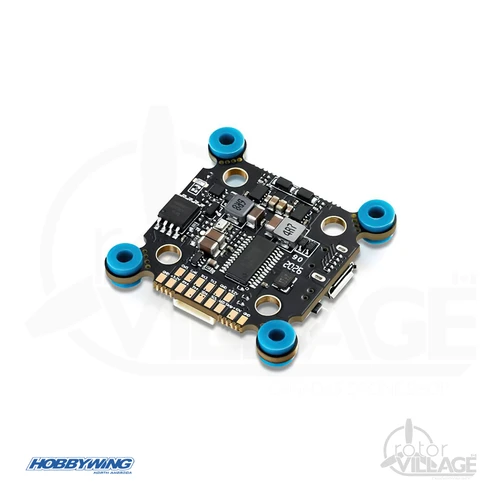

F7 FC

• Compatible with (Modes): PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, DShot1200, Proshot1000 and etc
• Compatible with (Transmitters): PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
• Mounting Holes: Convertible 20x20mm / 30.5×30.5mm
• Programming via: Betaflight/Cleanflight-configurator
• Firmware: HOBBYWING_XROTORF7CONV
• Voltage Monitoring: Supported
• Current Monitoring: Supported
• FC Programming: Supported
• External Buzzer: Supported
• BEC: [email protected]: [email protected]
• LED Control: Supported
• USB Port: MicroUSB
• Size: 32x32mm
• OSD: Built-in
• Weight: 3.3g

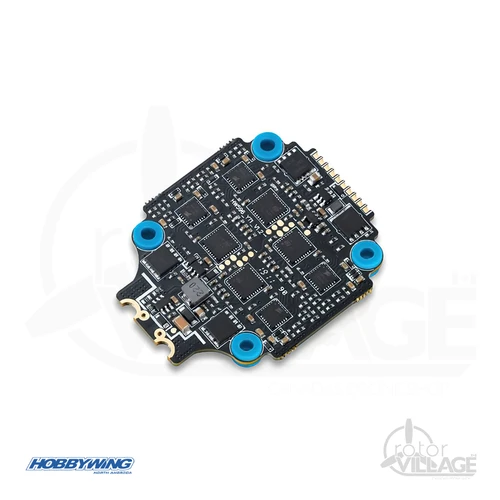

ESC Specifications

Model	XRotor FPV 30×30 ESC G2
SKU	30902064
Application	FPVs with 130-280mm Diagonal Wheelbase
LiPo Power input	3S-6S
Cont.Current	65Ax4
Burst Current	80Ax4
BEC Output	[email protected]
Input wires	12AWG-130mm* (Red/Black)
Output Wire	No wires but solder tabs
Connectors (In/Out)	XT60 (w/ Wires Soldered on) /no
Weight / Size	15g / 52x42x6.6mm
Mounting holes	30.5×30.5mm
Throttle Calibration	Supported
ESC Programming	BLHeliSuite32
DEO	Supported
OneShot Mode	Supported
Timing	Supported
Motor Rotation	Supported

Package Contents

• 1x Hobbywing XRotor Micro Combo Stack – F7 FC + 65A 4-in-1 BLHeli_32 ESC
• 1x Soft Mounting Grommets Set
• 1x Signal Cable
