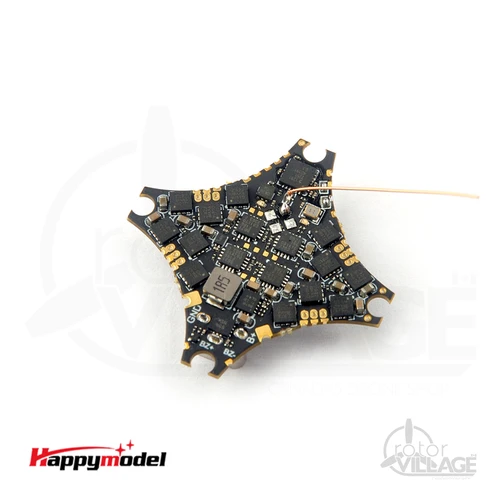

HappyModel SuperX HD ELRS 1-2S 12A AIO Flight Controller
| Flight controllerSuperX HD ELRS | Betaflight 4.4.2 firmware ready Firmware target: CRAZYBEEF4DX MCU:STM32F411CEU6 (100MHz, 512K FLASH) Sensor: BMI270 or ICM42688P (SPI connection) Power supply: 1-2S Lipo Lihv battery input (DC 2.8V~8.7V), only support 1s input for this drone Built-in 12A(each) Blheli_S 4in1 ESC Dshot300 read Built-in UART elrs receiver , elrs v3.0 ready, support WIFI and pass-through firmware update Bluejay ESC Firmware ready Built-in 5V 1.5A(Max) BEC Built-in voltage detectionBuilt-in currents meter No betaflight analog osd chip Antenna:enamel copper wire |
| Onboard 4in1 ESC | Power supply: 1-2S LiPo/LiPo HV Current: 12A continuous peak 15A (3 seconds) Support ESC-Configurator and BLHELI_S Suite configurator Factory firmware: Z-H-30 – Bluejay, 0.19, 48kHz Default protocol: DSHOT300 |
| Onboard UART ExpressLRS 2.4GHz Receiver | RF Frequency: 2.4GHz Antenna: enameled copper wire 31mm length Telemetry output Power: <12dBm Receiver protocol: CRSF Default firmware version: ExpressLRS V3.0.1 The same hardware with Happymodel EP1 receiver Could update firmware via ExpressLRS configurator or WIFI or Betaflight pass-through |

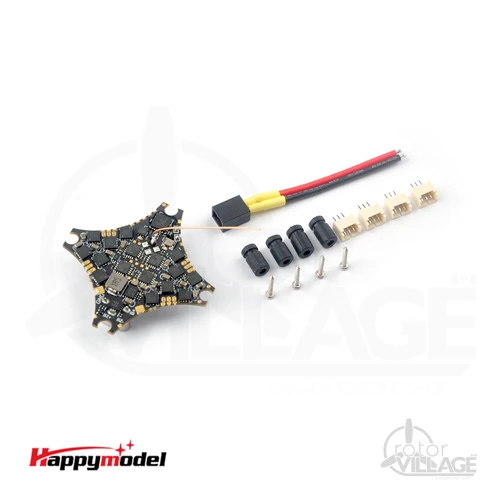

Package Contents
- 1x HappyModel AIO FC
- 1x Accessories Pack
| Width | 4.00 (cm) |
|---|---|
| Height | 4.00 (cm) |
| Depth | 0.50 (cm) |
| Amps | 12 |
| Mounting | AIO |
| CPU | F4 |
| Receiver Type | ExpressLRS |
