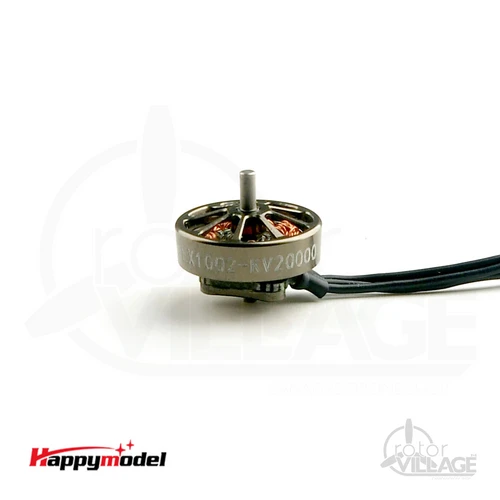

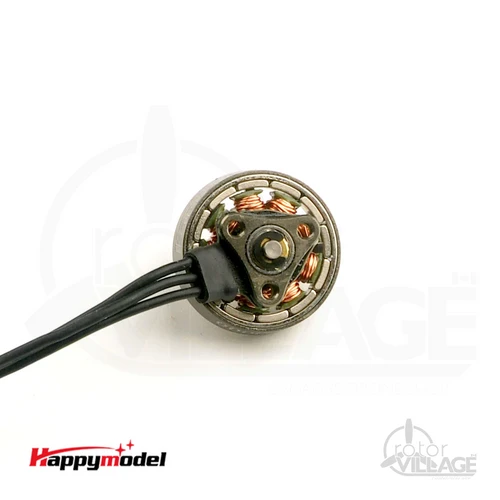

HappyModel EX1002 KV20000 Motor
This is a replacement motor for the Happymodel Moblite7 FPV Drone. It also fits on Happymodel’s Mobula7 and Mobula7HD.
SPECIFICATIONS
- KV: 20000KV
- Shaft Diameter: 1.5mm
- Configuration: 9N12P
- Stator Diameter: 10mm
- Stator Length: 2mm
- Motor Dimension(Dia.*Len): Φ13.5mm*12.5mm
- Terminals: JST1.25mm
- No. of Cells(Lipo): 20000KV compatible with only 1S lipo
- Wire length(exclude connector):40mm

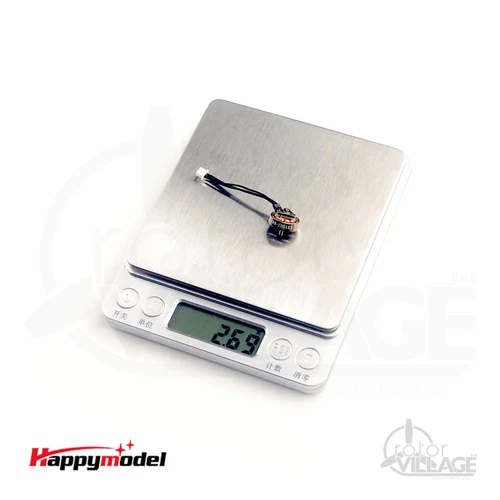

- Weight: 2.45g
| Happymodel EX1002 KV20000 Brushless motor Bench data | ||||||||||
| No-load voltage | No-load current | No-load Speed | KV | Voltage (v) | Current (A) | Thrust (g) | Efficiency (g/w) | Power (w) | Propeller | |
| 2 | 0.5 | 41820 | 20910.0 | 3.7 | 1.01 | 12.9 | 3.452 | 3.737 | Gemfan 2015-2 2-blade propeller | |
| 3.7 | 2.01 | 23.3 | 3.133 | 7.437 | ||||||
| 3.7 | 3 | 32.1 | 2.892 | 11.1 | ||||||
| 3.7 | 4 | 40.8 | 2.757 | 14.8 | ||||||
| 3.7 | 5 | 48.9 | 2.643 | 18.5 | ||||||
| 3.7 | 5.99 | 55.4 | 2.500 | 22.163 | ||||||
DIMENSIONS
Package Contents
- Â 1 x Motor
| Width | 0.05 (cm) |
|---|---|
| Height | 0.05 (cm) |
| Depth | 0.05 (cm) |
| Stator Size | 10xx |
| KV | 20000 |
