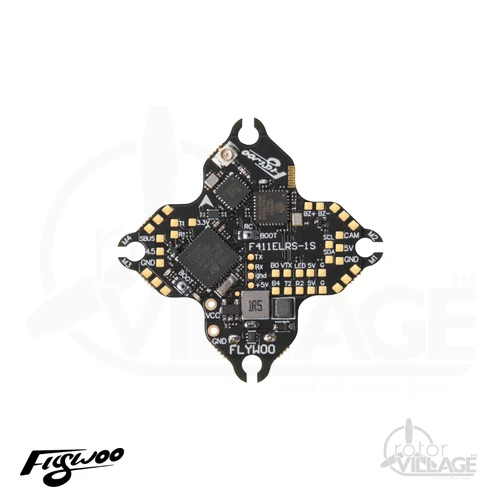

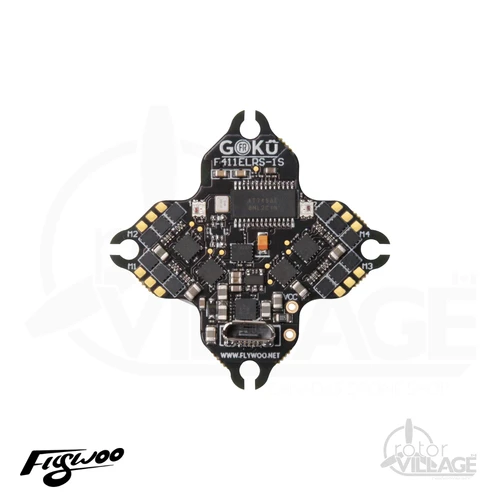

Flywoo Goku Versatile F411 1S 5A AIO w/ ELRS V2

GOKU Versatile F411 1S 5A AIO V2.0 is another versatile and highly integrated circuit board in the GOKU Versatile series!  Built-in ELRS 2.4g RX ，1S 5A ESC， OSD, 3 serial ports， I2C functionality  and 2XWS2812 LEDs .   Reasonable layout makes it easier for you to build . You only need to choose the motor, frame, camera, propeller ， everything else all packed into a compact whoop board.

Features

• Built-in ELRS 2.4g RX (UART2) , 1S , 5A ESC, OSD
• Opened 3 serial ports and 12C functionality
• Mounting Pattern: 25x25mm, M2

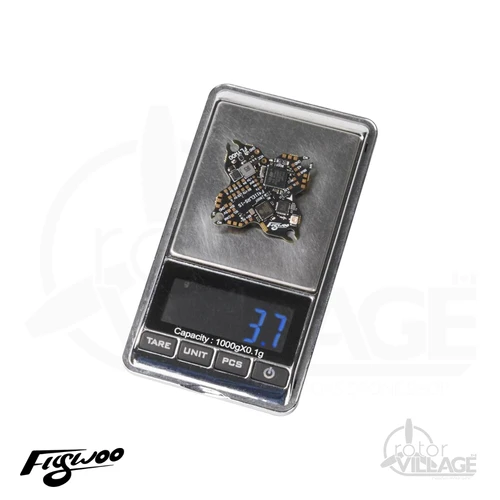

• Ultra light weight 3.7g
• Built-in 2XWS2812 LEDs
• Reasonable layout , easy to build
• Can work with different RX at the same time

Flight Controller Specifications

• MCU: STM32F411CEU6
• GYRO: ICM42688
• UARTS: 1/2
• Soft serial port：1
• I2C: SCL/SDA
• BEC: 5V
• Input Voltage: 1S ( <4.35v)
• Firmware: FLYWOOF411_5IN1_AIO
• Mounting:  25x25mm, M2

ESC Specifications

• MCU: EFM8BB21
• Power supply: 1S LiPo/LiPo HVCurrent: 5A
• Firmware: BLHeli_S
• Factory firmware: O_H_5_REV16_8.HEX
• Default protocol: DSHOT 150/300/600
• ELRS 2.4G RX (UART2)

PACKAGE Contents

• 1 x AIO Board
• 1 x 2.4G antenna
• 1 x 2.0MM plug cord
• 1 x 470UF/10V capacitor
• 4 x M2*6.5MM shock-absorbing ball
