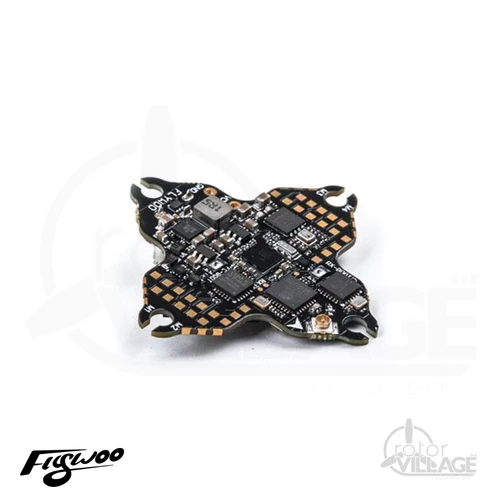

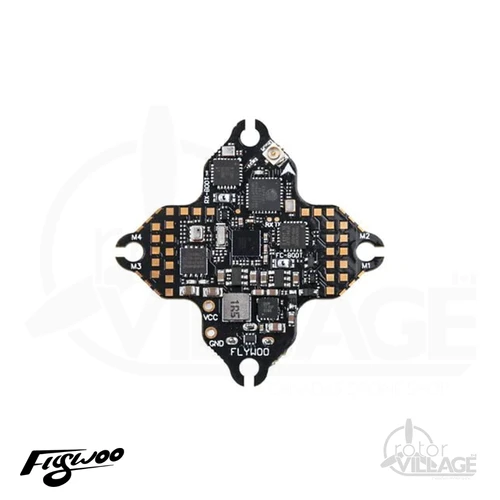

Flywoo Goku Versatile F405 1-2S 12A AIO – ELRS

The GOKU Versatile F405 AIO is a lightweight contender for whoops and smaller builds, coming in at 4g! Sporting 6 open UARTs, the MPU6000 Gyro, and optional built-in ELRS, the Versatile F405 is a small but powerful addition to the already impressive lineup of FCs from Flywoo.

Features

• Built-in ELRS 2.4g RX
• 6 UARTs and I2C functionality
• Black box and Barometer
• Configured with the powerful F405 BGA MCU
• Built-in 2x WS2812 LEDs
• Reasonable layout, easy to build
• Can work with different RX at the same time
• MPU6000 Gyroscope

Specifications

• Input Voltage: 1-2S
• MCU: STM32F405
• IMU: MPU6000
• Blackbox: SPI 16MB
• BEC: 5V 2A
• LED: 2x WS2812
• Buzzer: Yes
• Flight Controller Firmware:  FLYWOOF405S_AIO
• ESC Firmware: BLHELI_S
• Mounting Pattern: 25.5×25.5 3mm
• Weight: 4.1g

ELRS2.4G RX

• ESP8285 MCU
• SX1280IMLTRT RF Module
• Frequency Range: 2400 MHz to 2500 MHz
• Maximum receive refresh rate: 500Hz
• Minimum receiver refresh rate: 25Hz Serial:
• UART 1
• Firmware: Flywoo EL24P 2400 RX
• Version: 2.X.X

PACKAGE Contents

• 1 x AIO Board
• 1 x 2.4G antenna
• 1 x 2.0MM plug cord
• 1 x 470UF/10V capacitor
• 4 x M2*6.5MM shock-absorbing ball
