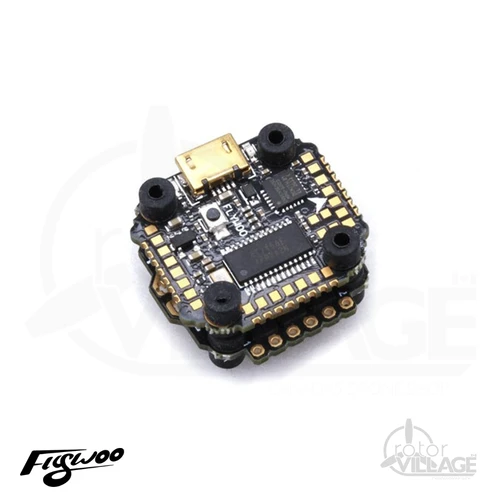

This smallest, most powerful GOKU 405 Nano flight controller packed with features including a barometer, 16MB blackbox, 6 complete hardware serial ports, I2C functionality and WS2812 LEDs on each corner.

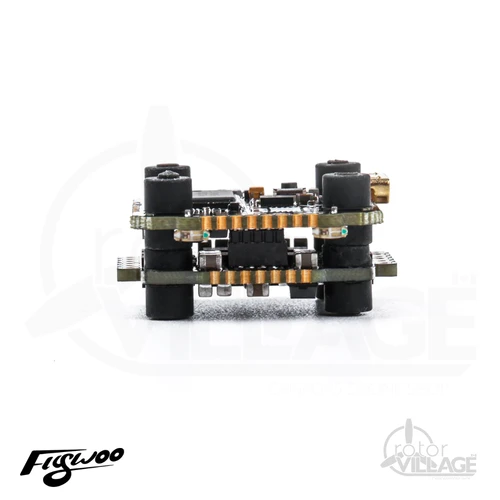

It is specifically designed to be pin mounted to the Goku BS13A / 35A 4in1 16×16 ESCs but can also be soldered via pads. The programmable WS2812 LED on each corner provide low profile lighting for this tiny FC.

SPECIFICATIONS

GOKU GN405 NANO 16X16 FC

• MCU: STM32F405 BGA
• IMU: ICM42688
• Barometer: BMP280
• input voltage ： 2-6S
• Onboard LED：WS2812*4
• 6 hardware UARTS (UART1,2,3,4,5,6)
• Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
• PPM and PWM receivers are not supported.
• Onbord 16Mbytes for Blackbox logging
• 5V Power Out: 2.0A max
• 3.3V Power Out: 0.5A max
• Dimensions: 22x22mm
• Mounting Holes: Standard 16/16mm square to center of holes
• Weight: 2.3g
• Firrmware : FLYWOOF405NANO

BS13A BLHELI_S 2-4S 4-IN-1

• Weight: 2.5g
• Mounting Hole: 16x16mm (M3)
• Support Oneshot, Multishot, DShot150/300/600
• Current Rating: 13Amps

Package Contents

• 1 x GOKU GN405 Nano 16X16 FC
• 1 x BS13A BLheli_S 2-6S 4in1 ESC
• 4 x M2 19mm Bolts
• 4 x M2 Nuts
• 8 x Spacers
• 1 x Capacitor
• 1 x Flywoo Sticker
• 1 x Connecting Wire
