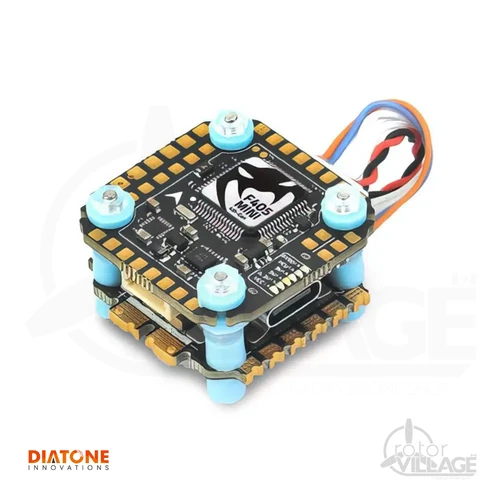

Diatone MAMBA F405 Mini MK4 Combo Stack – 40A 20×20
Â
The Diatone Mamba MK4 Mini Stack features a 20×20 MK4 F405 Flight Controller and 40A ESC. With OSD and an MPU650 Gyro, this stack is the perfect addition to your FPV build.
Â
MK4 UPDATES
- Upgraded the twisted pair anti-jamming cable, and the reinforcement process
- MINI series upgraded DJI interface and 5V 15W/9V 18W 2 set BEC
- Miniseries FC use 2mm and 3mm fixing holes
- The entire series supports 6 set uart and |2C
- A full range of integrated Flash and Baro
- MP9943 synchronous rectifier BEC
- The pad area increased by 30%
- Pad spacing increased by 100%
- The whole series uses Type-C
- 32Bit ESC all support 128K
- 4set power protection
Â
Features
- 16M Flash Memory Blackbox
- 20x20mm Mounting Pattern
- 3~6S Lipo (12.6~25.2V) Input
- MAMBA MINI MK4 F405 FC
- MAMBA MINI 40A ESC
- MPU6500 GYRO
- 6 Uarts
- Buzzer
- OSD
Â
Â
Specifications

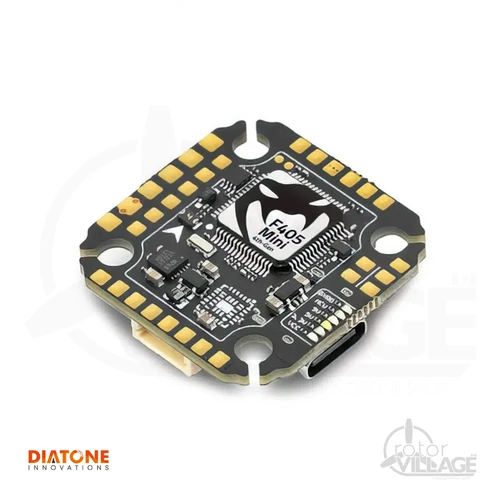

MAMBA MK4 F405 MINI FC
- Mounting: 20.0×20.0mm,M3/M2
- Receiver: TBS/SBUS/IBUS/DSM
- GYRO Version A: Gyro MPU500
- Size: 29.0×29.5×6.5mm
- Receiver Protection: Yes
- Blackbox: 16M Memory
- Frequency: 168MHz
- Software: Betaflight
- BEC Protection: Yes
- TVS Protection: Yes
- AIR UNIT Port: Yes
- ESC Signal: 6 Set
- MCU: STM32F405
- VTX Switch: Yes
- Buzzer Pad: Yes
- Barometer: Yes
- OSD: AT7456E
- CURR Pad: Yes
- BEC3.3V: 0.5A
- Input: 6S Lipo
- BEC 5V: 2.5A
- Weight: 6.02
- Uarts: 6 Set
- BEC 9V: 2A
- BF LED: Yes
- F.Port: Yes
- 12C: Yes

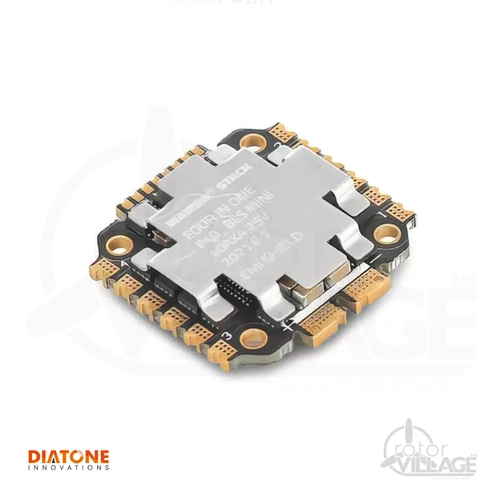

MAMBA 40A MINI ESC
- Input Voltage: 3~6S Lipo 12.6-25.2V
- Continuous Current: 40A×4
- Mounting Pattern: 20×20
- Protocol: Dshot300/600
- Burst Current: 45A
- BLHeli: BLHeli_S
- Target: CH40
- BEC: No
PACKAGE CONTENTS
- 1x Diatone Mamba Stack – MK4 F405 FC + 40A 3-6S BLHeli_S ESC – Mini 20×20
- 5x M3 ESC Isolation Dampers
- 5x M2 ESC Isolation Dampers
- 5x M3 Silicone Dampers
- 5x M2 Silicone Dampers
- 1x 6-Pin Air Unit Cable
- 2x 8-Pin Cable
Â
| Width | 4.00 (cm) |
|---|---|
| Height | 4.00 (cm) |
| Depth | 1.00 (cm) |
| Mounting | 20×20 |
| CPU | F4 |
| Amps | 40 |
